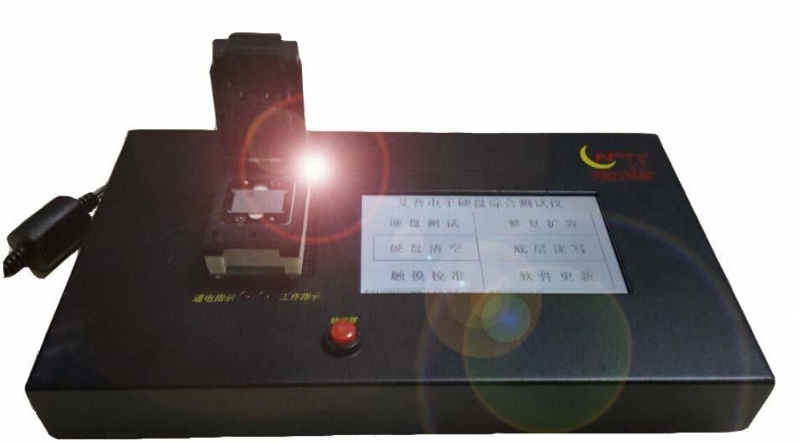

Introduction of HDD Integrated Tester
This machine is a professional customed version for Apple HDD integrated equipment.Easy to operate, can perform a fast various operation on the HDD.With 4.3 inch LCD,intuitive interface,can be used on the iPhone 4s to iPhone 6p and iPad 2 to iPad 6 and other products of the HDD.Can quickly extract data, write, check,erase.One machine complete the all opertion to a HDD,etc.Function.
1 A key extract FW data:a click can start the fast extraction. Extract complete screen will display the corresponding commonly used FW, including serial number, country, model, Bluetooth address code, WIFI address code. Generally completed within 5 seconds;
2 A key write FW data:a click can write your extract FW dat or modified FW data, generally 4 seconds to complete;
3 Quick FW data modification:the serial number, nationality, model, Bluetooth address code, WIFI address code. The interface will show the FW inforemation extracted or modified last time. Can be done on this basis, a changes can be carried out under a HDD, the screen has the same buttons as the computer keyboard layout, maximum compliance with your habits;
4 Surpport Automatic build FW data:can automatically constructed the FW data whether 32bit and 64bit.so ,find source data HHD become unnecessary;
5 Either 32bit or 64 bit models:source data HDD can be a arbitrary types and any capacity,so, specially source data HDD is unnecessary,restore HDD before is unnecessary.in other words,HDD restored or empty is same to this machine;
6 100% repair HDD Error:can repair the error caused by HDD in restore process, can fast recovery engineering capacity HDD to normal capacity;
7 Quick erase HDD:support from iPhone 4 8GB HDD to the 128GB HDD of iPhone 6p. Support auto dectet HDD when placed or take out, that is,after the HDD placed not need to click touchpanel,a automatic operation will be start;
8 Quick check whether HDD ok:can make a quickly detection to the HDD,include model and theoretical capacity and the actual capacity and whether ok. Support auto detecte HDD fuctionnal when placed or take out, that is,after the HDD placed not need to click touchpanel,a utomatic operation will start. greatly improve the efficiency of the HDD check;
Supporting HDD No.
|
Small outline HDD
|
|
8GB
|
H2JTCG8T22MBR
|
32GB
|
H2JTEG8UD2MBR
|
|
THGBX2G6D1JLA01
|
H2JTEG8UD3MBR
|
|
16GB
|
THGBX2G7D2JLA01
|
H2JTEG8PD1MMS
|
|
THGBX2G7B2JLA01
|
SDMALBB4-032G
|
|
THGBX3G7D2KLA0C
|
SDMBLBBB4-032G
|
|
THGBX3G7D2KLF0C
|
SDMILBCF2-032G
|
|
H2JTDG8UD1MBR
|
SDMDLBCB4-032G
|
|
H2JTDG8UD2MBR
|
SDMILBDF2-32G
|
|
H2JTDG8UD3MBR
|
KLEBG4GWCA
|
|
H2JTDG8UD1BMS
|
KLEBG8FWCA
|
|
H2JTDG8UD2BMS
|
64GB
|
THGBX2G9D8JLA01
|
|
H2JTDG8UD3BMS
|
THGBX2G9B8JLA01
|
|
SDMALBB2-016G
|
THGBX3G9D8KLA0C
|
|
SDMBLBBB2-016G
|
THGBX3G9D8KLF0C
|
|
SDMDLBCB2-016G
|
THGBX4G9T8KLF0C
|
|
KLEAG4FWCA
|
THGBX4T0T4KLF0E
|
|
KLEAG2GWCA
|
H2JTFG8YD1MBR
|
|
32GB
|
THGBX2G8D4JLA01
|
H2JTFG8YD2MBR
|
|
THGBX2G8B4JLA01
|
H2JTFG8YD3MBR
|
|
THGBX3G8D4KLA0C
|
H2JTFG8YD1BMS
|
|
THGBX3G8D4KLF0C
|
H2JTFG8YD2BMS
|
|
THGBX4G8T4KLF0C
|
H2JTFG8YD3BMS
|
|
H2JTEG8VD1BMR
|
H2JTFG8PD1MMS
|
|
H2JTEG8VD2BMR
|
SDMALBB8-064G
|
|
H2JTEG8VD3BMR
|
SDMBLBBB8-064G
|
|
H2JTEG8UD1MBR
|
SDMILBCF4-064G
|
|
Large outline HDD
|
SDMDLBCB8-064G
|
|
SDMILBDF4-64G
|
|
SDMALBBD-96GB(96GB)
|
|
SDMDLBCB8-064G
|
|
16GB
|
THGVX1G7D2GLA08
|
128GB
|
THGBX2T0BBJLA03
|
|
H2DTDG8VD1MYR
|
THGBX4T0T8KLF0C
|
|
H2DTDG8UD1MYR
|
THGBX4T0T8KLF0E
|
|
32GB
|
THGVX1G8D4GLA08
|
H2JTGG8PD1MMS
|
|
H2DTEG8VD1MYR
|
SDMILBCF8-128G
|
|
H2DTEG8YD1MYR
|
SDMILBDF8-128G
|
|
64GB
|
THGVX1G9D8GLA08
|
|
|
H2DTFG8YD1MYR
|
|
1 Main Interface

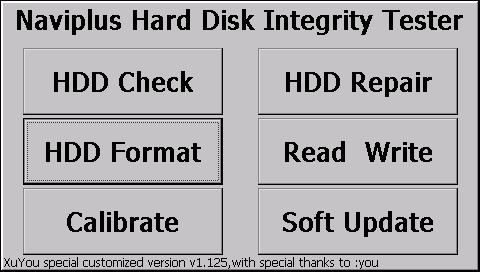

Fig.12 Main Interface
1.1 Read Write:Click will open theFW data read and write interface,can do a quickly FW data read and write and modify ,support 32bit and 64bit HDD;
1.2 HDD Check:Click will open the HDD check interface, can do a quickly check to HDD;
1.3 HDD Repair:Click will open the Repair and Expansion Interface,the interface can repair a variety of error when restore caused by the HDD data damage and recovery engineering capacity of the HDD to the normal capacity;
1.4 HDD Format:Click will open the HDD Fomat interface,in the interface can do a erase to the HDD ,it is namely recovery HDD storage as the factory default storage,can solve the restore error caused by HDD data error;
1.5 Calibration:Click will open thetouch screen calibration interface,calibration can be make it more sensitive when click the touch screen;
1.6 Soft Update:Click to open the software update interface,can quickly update the software version of the machine
2 Read and Write

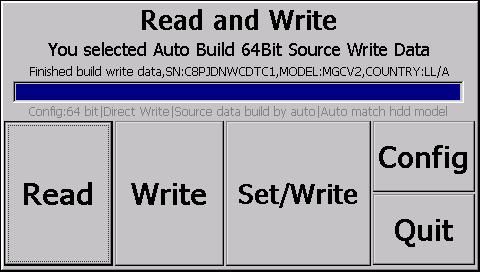

Fig. 2 FW read and write
Click the Read Write button in main interface,enter the ‘FW read and write and modify interface’,as shown above.The interface module can independently complete the extraction FW data from HDD,Write,Modify. And can automatically match the parameters of each HDD model.
Note:when the interface opened first time after this machine power on,the machine have not the accord FW data,so Write and Set/Write button is gray for prohibit the operation.
2.1 Use instructions :
2.1.1 Read:lace HDD correcttly,of course this so-called master HDD must have a complete FW information.Click the Read button to start the extraction process, the extraction process will be completed in a few seconds.
2.1.1.1 If the HDD has a complete FW data,after extract completion,the Serial Number,Model and Nantional will be displayed on the top of the screen.The Bluetooth and WIFI information will completely display when open the Set/Write interface module;
2.1.1.2 If you don’t ready to modify the FW information,placed the HDD you ready to write,and click Write button,then,Write can be completed ,this is commonly used for small capacity HDD to ‘large capacity HDD upgrade application’;
2.1.1.3 If need to modify the FW information,click Set/Write button ,will open the modify interface module .and can change SN,MODEL,etc..
2.1.1.4 This FW data will always exist in this machine before shutdown, or re extracted master data or modified the FW data;
2.1.2 Write:Place HDD correcttly,and has extracted the corresponding master data:
2.1.2.1 Click the Write button,then,start the process of writing,writing will finished usually in a few seconds;
2.1.2.2 For the ‘large-capacity-upgrading application’,after completing the extraction,can use this FW data write to the large capacity HDD directly, there is no need to modify any information;
2.1.2.3 For each click of the write button,is written the data that has been modified or the data that extracted last time.
2.1.3 Set/Write:Place HDD correcttly,and has extracted the corresponding source data:
2.1.3.1 Click Set/Write button,open the ‘FW information modify interface module’.After the completion of the modification,click the Enter button on the interface,that will start the process of writing directly.then, the modified data be written to the HDD;
2.1.3.2 This modified data will always exist in the machine before it shutdown or re extracted a master data;
2.1.4 Config:Click this button will open the ‘interface module for read and write settings’, including the current HDD Bit-width accord the HDD that used product and whether format before write,etc
Click will quit from this interface,but the master FW data on an extraction or modificatied will always exist in machine uness shutdown;
2.2 Possible errors and solutions:
2.2.1 The Extraction Speed:Different HDD model be a different speed.But the reaction in the following situations will probably represent the different causes;
2.2.2 While the master HDD have a normal FW data,the general extraction time will be completed less than 6 seconds,This is normal;
2.2.3 When the master HDD data is incomplete or does not exist, in order to increase the compatibility,the machine will do a comprehensive scan,so a note information will display ‘Data abnormal,resetting para,next will operatied normal ,about need 12-35s,wait...’ extraction time will be longer,and mabye display a note information that could not find data in the last tip;
2.2.4 When the master HDD is empty, it does not contain any data, the machine in order to increase the compatibility will be to do a comprehensive scan,extraction time will be longer, and could not find information system in the last tip;
2.2.5 The currently selected Bit-Width mismathed the currenty extracting HDD. Such as the choice of 32bit Bit-Width but is a extraction of 64bit data HDD, extraction time will be longer, and a note of could not find information will display untill last time;
2.2.6 The HDD that extracting currently have a normal FW data, but it’s parameters mismathed the default parameters of the machine,Extraction time will be longer, but about 30 seconds later,will re extraction a correctly FW data.
2.3 Possible errors when extraction:
2.3.1 If you click the Read button,there a buzzer long beep beep beep sound, and a note information ‘Not detected HDD’in the LCD interface.This means a normal HDD information is not detected. This phenomenon indicates that the HDD may not be put in properly place, or it’s pad poor contact to socket , or it’s only a half of capacity or the HDD has been physical damaged;
2.3.2 if the extraction progress bonuced back and forth in about 3/5 or 1/3 position, and in the final buzzer three consecutive long beep beep sound and at the LCD interface ‘verifly failure, please check the HDD placed...’.This situation is generally the HDD is not in place or the HDD itself a defaced welding inventory;
2.3.3 if the extraction process progress bar in about 2 / 5 stops, and in the final buzzer three consecutive long beep beep sound and at the interfacetips ‘read failed, please check the HDD place’.This indicate read process read a wrong information return by HDD.In this case,the corresponding storage area of the HDD is damaged or is in conflict with the preset parameters of the machine;
2.4 Possible errors in writing process:
2.4.1 If you choose the Bit-Widthis 32-bit (64 bit), but current writing HDD that only be used in 64 bit (32bit) applicatioin,the interface will display a note information that ‘The Model Mismatch..’.Typical representative,such as: the current Bit-Width is 64bit, but writen to a HDD model such as ‘thgbx1g7d2gla’ that only be used in 32bit product;
If the write process interface display a information ‘read and write failed, please check the HDD place...’,this indicates that the write process received the error return information from HDD.Generally,is between the HDD and the adapter does not light contact or HDD pad is dirt.It will normal when you re placed the HDD;
3 Configration for Read and Write

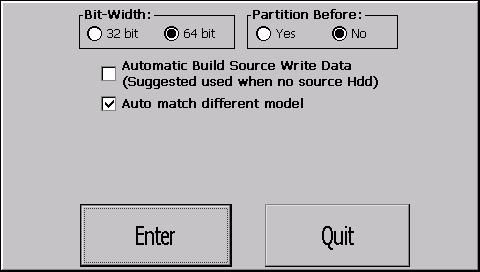

Fig. 3 Configuration Interface for Reading and Writing
Click the Config button on the read and write interface, enter ‘the configuration interface’, as shown above. This interface option is configured variety modes about read and write, these option is adjusted only in the click of the Enter button.
3.1 Use instructions:
3.1.1 The Bit-Width: Include 64bit and 32bit radio options. This option is required and then to be used to operate the HDD model to maintain consistency, otherwise it will appear in the HDD read and write error.Default to 64bit options;
3.1.1.1 32bit product:iPhone 4s,iPhone 5,iPhone 5c,iPad 2, iPad 3, iPadmini1;
3.1.1.2 64bit product: iPhone 5s, iPhone 6, iPhone 6p, iPad 4, iPad 5, iPad 6, iPadmini2, iPadmini3.
3.1.2 Partition Before:Contains two radio option, default is No option,as follows:
3.1.2.1 Yes options: before the data writing,do a simple processing of partitions on the HDD,partition accomplished
after began writing.This option is mainly aimed at the HDD that appear a error when restore and the use of recovery capacity.Of course, when you don't want to use this machine ‘HDD Format Interface Module’ for the HDD formating operation alone,you can do as this,you can choose this option, you can save a lot of time;
3.1.2.2 No options: write FW datadirectly,and ignore the HDD whther if have a restore error or data error.To the HDD that has been formated with ‘HDD Format Interface Module’ of the machine , choose this option can save time.
3.1.2.3 For most of the HDD, if this HDD had not reported the errors when restore, can choose No option and direct write;
3.1.2.4 If used for the Unlock ID lock,should choose the No option for retain the data of that user.
3.1.3 Automatic build source write data:This option is only recommended used when have not a source master data HDD, the default is non-selected.Such as check this option:
3.1.3.1 To Read and Write Interface Module,click the read button, the machine will automatically build a FW data according current Bit-Width,and not read from HDD that placed in socket;
3.1.3.2 The automatically builded FW data has the feature:Serial number and WIFI MAC and Bluetooth MAC randomly generated, but ensure WIFI and Bluetooth MAC address does not repeat;
3.1.3.3 The current FW data types automatically build depends on the selected Bit-Width in config interface module,if 32bit then build the 32bit FW,64bit vice versa;
3.1.4 If need extracte data from the master HDD:Uncheck this option.If this option is switch from checked to unchecked, the source write data by automatically builded will be immediate failure.click the read button will read the data from a master HDD in socket adapter;
3.1.5 Automatic match different model parameters: This option is used for match the master data HDD model and the written HDD model,default is selected.
4 FW Modification

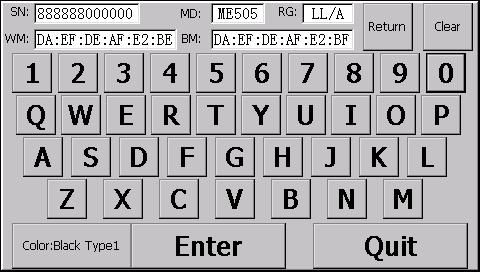

Fig 4 FW modification
Click the Set/Writebottom in the Read and Write interface,open the ‘FW Information Modify interface module’, as shown above. Click the Enter button will save the modified information and exit this interface and automatically start writing process. Click the Quit button will maintain the FW information unchanged and exit.
4.1 Each component annotation:
4.1.1 Text of SN: Current Serial Number;
4.1.2 Text of MD: Current Model;
4.1.3 Text of RG: Current Country;
4.1.4 Text of WM: Current WIFI mac address code;
4.1.5 Text of BM: Current Bluetooth mac address code;
4.1.6 Return button:Equivalent to the PC keyboard ‘ß’ key;
4.1.7 Clear button:Clear the contents of the currently selected edit box;
4.1.8 Open the interface module,each column shows the contents of current FW information.
4.2 The use of various components:
Open the interface module, the default is first to modify the SN, so ,the input is to the SN edit box automatic.The functions use as follows:
4.2.1 The SN modifications:click anywhere within the section,click the Clear button, the section content removed. The column is limited to no more than 12 characters. When the column has been accumulated to 12 characters, the input on the keyboard will be transferred to the Model column;
4.2.2 The Model modifications:click anywhere within the section,click the Clear button, the temporary model removed. The column is limited to no more than 5 characters. When the column has been accumulated to 5 characters, the input on the keyboard will be transferred to the Country column;
4.2.3 The Country modifications:click any location within the section,click the Clear button, the section content removed.The column is limited to no more than 4 characters, of which, the ‘ / ’ character of the opportunity to enter the column in the third characters automatically add.
4.2.4 The WiFi code and Bluetooth code modifications:click any location within the section,click the Clear button,the section content removed.At this time the keyboard to adjust the distribution of 16 binary input, the column is limited to no more than 17 characters. Among the character ‘ : ’ will automatically add in the appropriate location.
4.2.4.1 In order to improve the efficiency of the machine,when modified WIFI code,Bluetooth address code
will followed automatic superposition of WIFI address code. The last character will be automatically modified for different numbers to the WIFI address code last character , so that you may only enter the WIFI address code;
4.2.4.2Bluetooth address code can be independently edit, and WIFI address code is no dependency relation
to Bluetooth address code edit.
4.2.5 The Color Modifications: click the Color button that arrange in lower left corner of the interface, the color will switch to next, such as:Previous color: black Type 1, the first time you click will switch to the color: black Type 2, second click will switch to color: Black Type3. Open this screen by default to show the last extracted data contained or the modfied color Typeification last time. Color categories are as follows:
4.2.5.1 Black:
iPad 5,iPhone 5s,iPadmini 2->Black Type1
iPhone 6,iPad 6, iPadmini 3->Black Type2
iPhone 5c->Black Type3
iPhone 4s,iPhone 5,iPad 3,iPad 4,iPadmini1->Black Type4
4.2.5.2 White:
iPad 5,iPadmini2,iPhone 5s,iPadmini3,iPhone 6->White Type1
iPhone 4S,iPhone 5,iPad3,iPadmini1->White Type2
iPhone 4s,iPhone 5,iPad3->White Type3
iPhone 4s,iPhone5,iPad3->White Type4
4.2.5.3 Cashmere: iPhone 6->Cashmere
4.2.5.4Golden:iPhone 5s->Golden Type1
4.2.6 If you just need to modify the last few characters of the section, click any location within the section ,and click the Return button,bit by bit will be deleted from left to right;
4.2.7 Each section above need with the only number of characters it should have,otherwise the machine make the modifation is invalid and remain it is same as last time when write.
